F-4 Phantom II
by Daren Savage

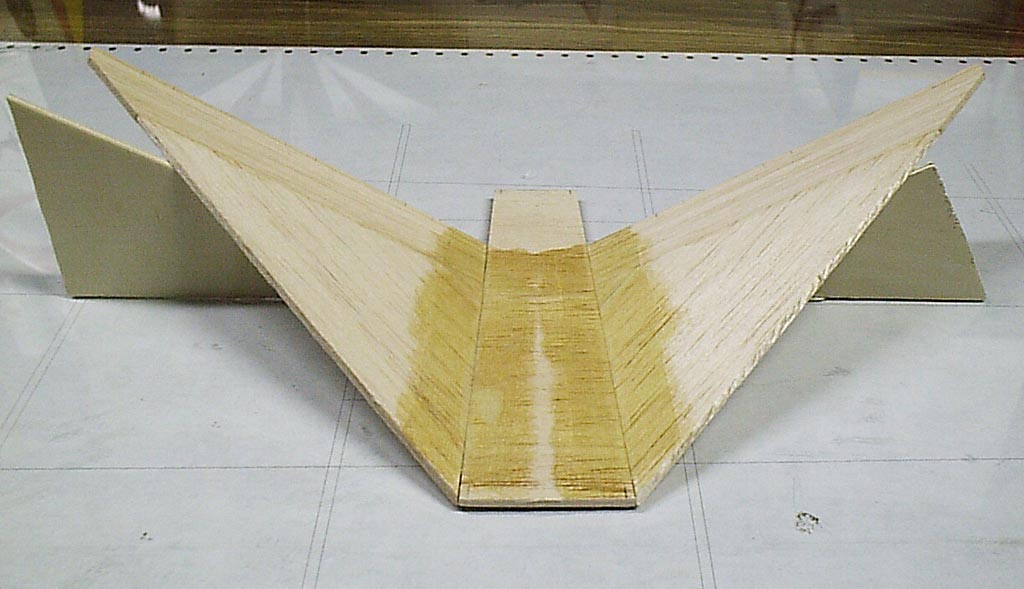

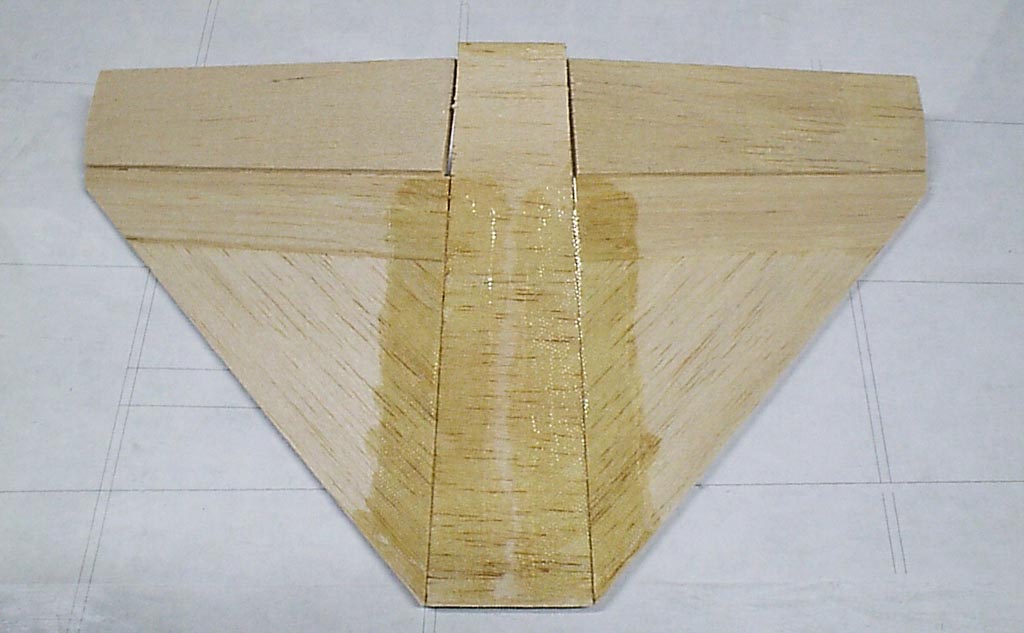

The horizontal stab pieces have been glued together and are seen here jigged for joining to the center section. Also seen is the fibreglass reinforcement.	The elevators have been hinged and joined to the stab. Note, do not glue hinges in at this time.

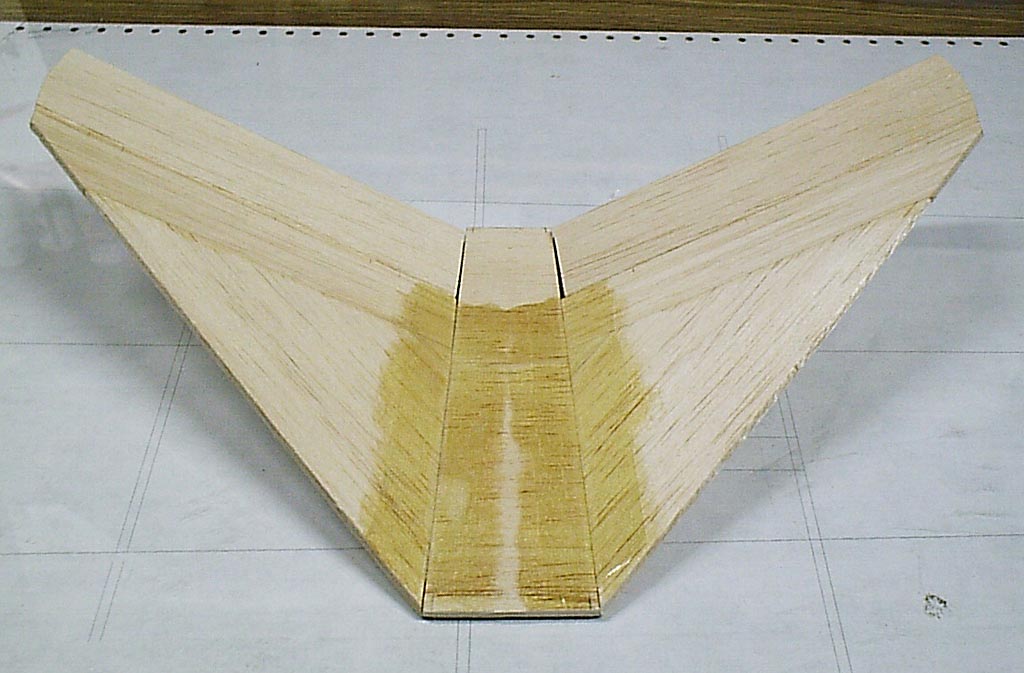

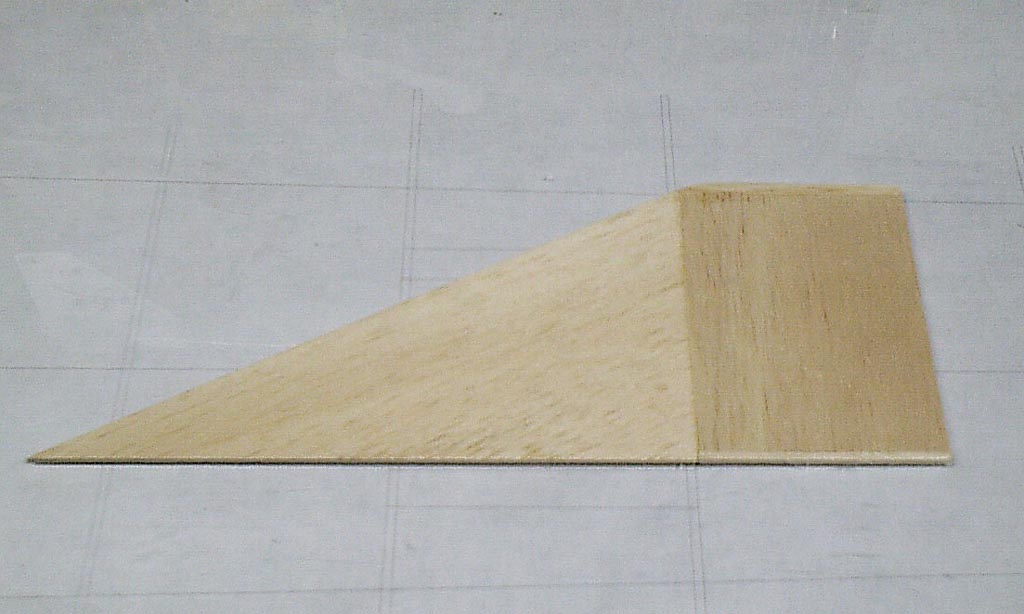

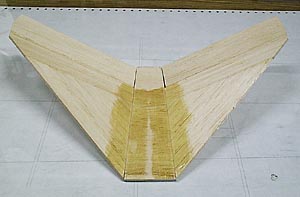

This is the top view of the horizontal tail planes. Note the direction of the wood grain. 1/8" balsa is used for elevators and stab pieces.	The vertical tail is seen here. Again, not the direction of the wood grain and the stiffeners used to reduce warping of the vertical grain. Use light 1/8" balsa.
